Product Description: JED2Z18

ACUGEN® .JWV File to Teradyne Z1800 General Test Language

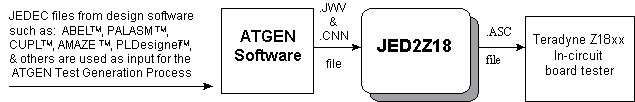

JED2Z18 software automatically converts ACUGEN Software’s ATGEN ® vector files (.JWV files) into Teradyne Z18xx General Test Language. This product, when used in conjunction with ATGEN software, provides a complete solution for in-circuit testing of PLDs on Teradyne Z18xx board testers.

Undisplayed Graphic

No Debug Necessary

Easy to Use

Creates General Test Language

Teradyne Z18xx testers use the General Test Language (Stimulus & Expect States) to test the PLD during in-circuit testing. The output files are in the "TEMPLATE" format used as library elements in the APG phase of board test development.

The disables information for each PLD is to be supplied by the user as part of the board test program.

The software has the option to include the JEDEC vectors as comments.

Files Compile and Run Without Debug

Vectors produced by ATGEN software contain no races or backdriving problems.

Easy to Use

The translator is invoked by typing "JED2Z18", followed by the name of the .JWV file, at the operating system prompt.

Technical Support Service and Updates

Technical support is provided under the support plan for your particular ATGEN base product.

Requirements

JED2Z18 software must be run on a computer that has a general purpose or board test ATGEN base product (S22, S25, S45, S50, S55, S60) installed.

ATGEN and ACUGEN are registered trademarks and AAACT, AALCA, AAMAX, AALAT, AAQL, SHARPEYE & FASTpass are trademarks of ACUGEN Software, Inc. All other trademarks are the property of their respective holders. 25jul96
